The Semaphore app provides quick and easy access to descriptions of signals displayed on semaphores and signals. With this application you will learn about the regulations, signals and indicators on the railroad infrastructure, wherever and whenever you need it.

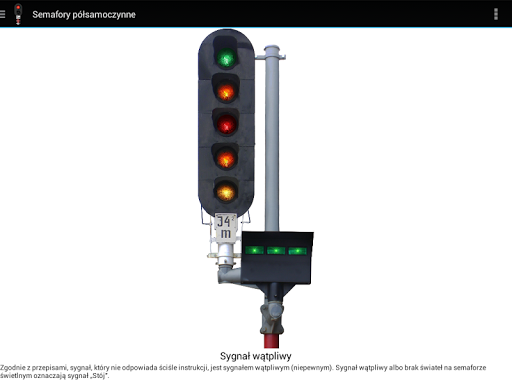

A convenient and user-friendly interface will allow you to view any signal you are interested in. Virtual semaphores show specific signals, their corresponding definitions, a description of where the signal occurs, and the speed at which you can travel by it. In addition, the application includes a successively updated database of indicators and signals used on the railroad infrastructure.
The application does not contain ads and is free. Comments on the application, its future development or corrections are very welcome.
Currently supported are:

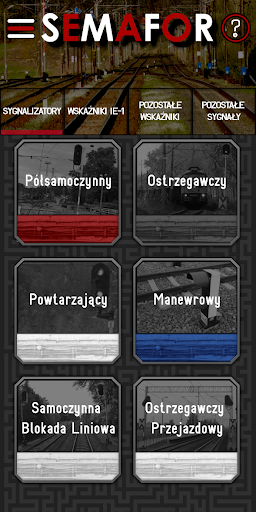

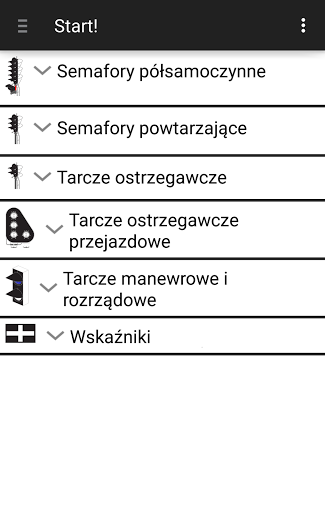

- variable cell and appearance layouts for:
-> semaphores,

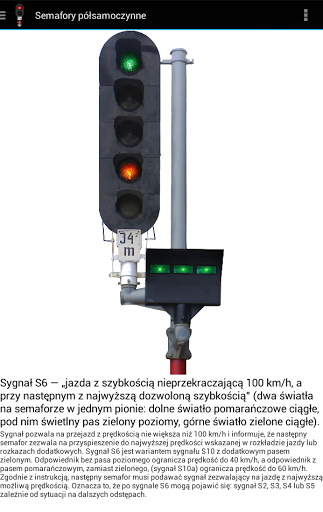

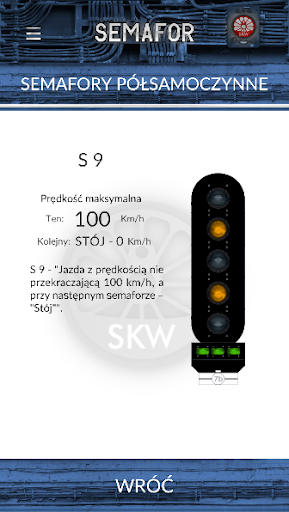

-> ABS (Automatic Block Signals),
-> repeater signals,
-> light warning signals,
-> light shunting dials,

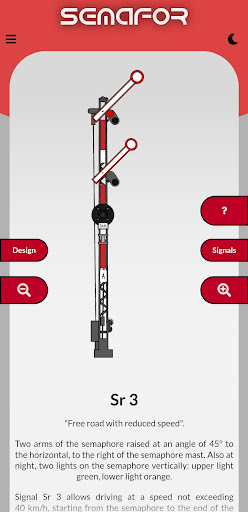

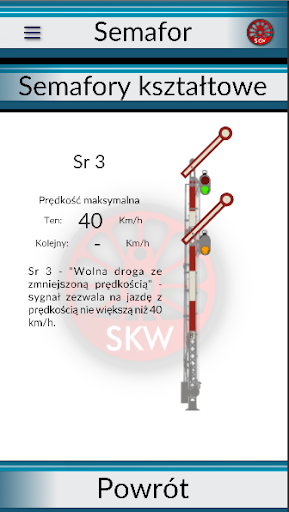

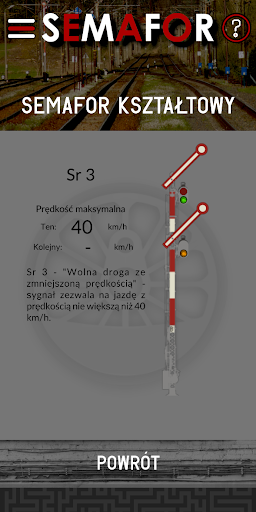

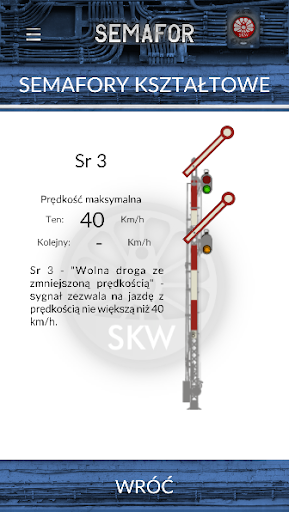

-> shaped semaphores,
- alternate signal signaling,

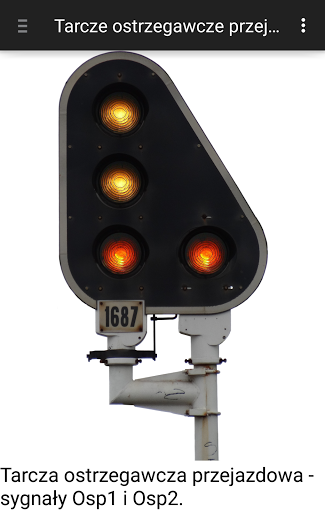

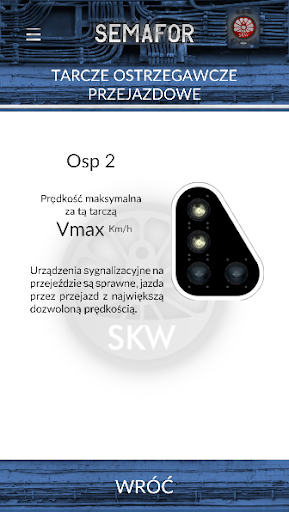

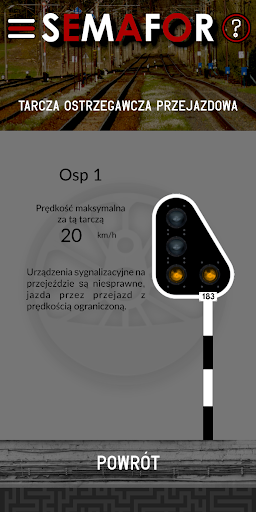

- crossing warning shield,
- light and shaped shunting disc,

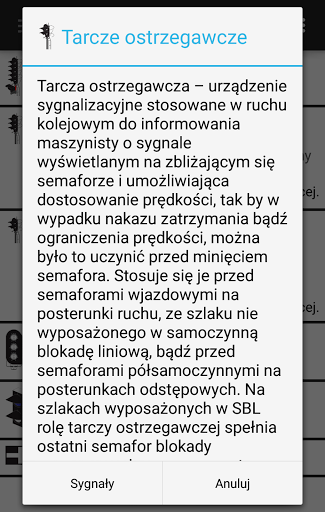

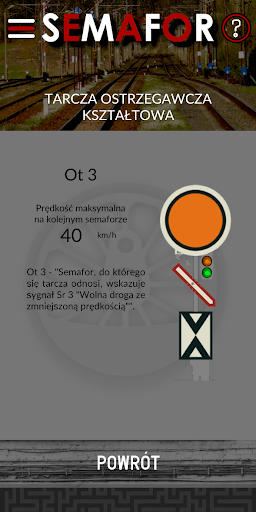

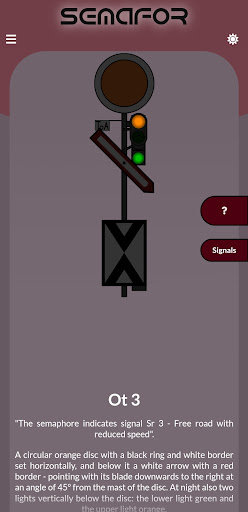

- shaped warning discs stationary, two-valve and three-valve,
- shaped shunting disc,

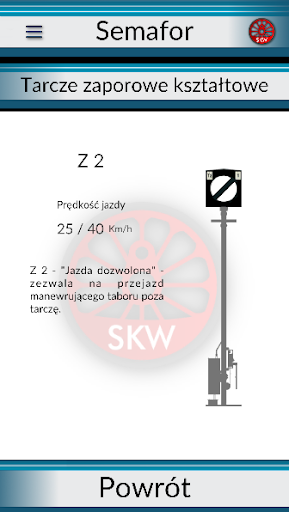

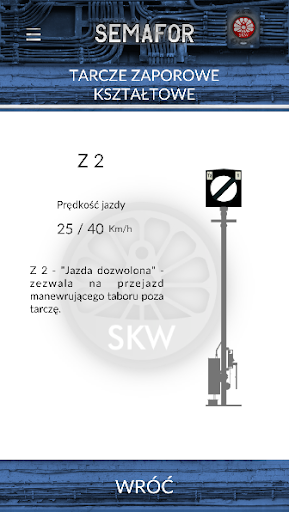

- shaped barrier shield,

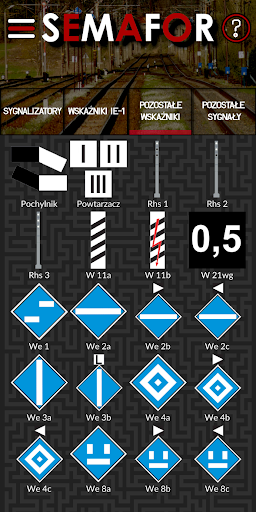

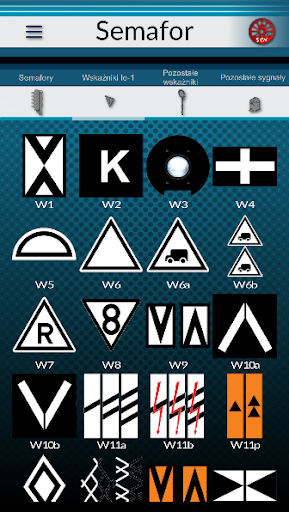

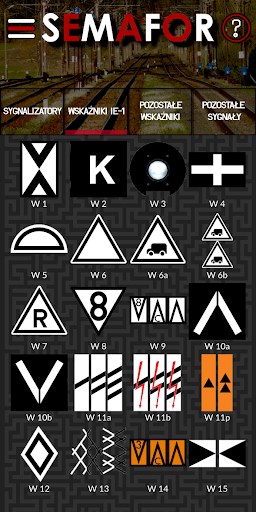

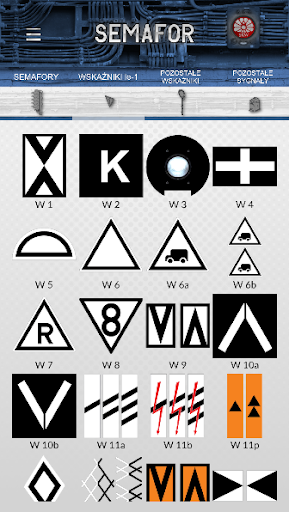

- all general operating indicators, ETCS, overhead line,
- other indicators,

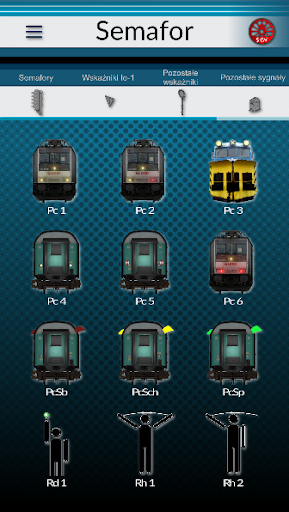

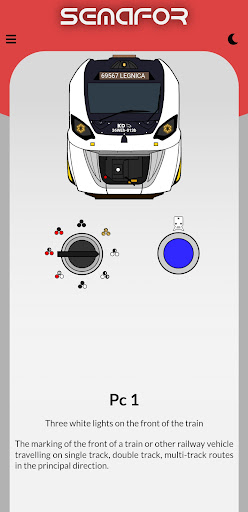

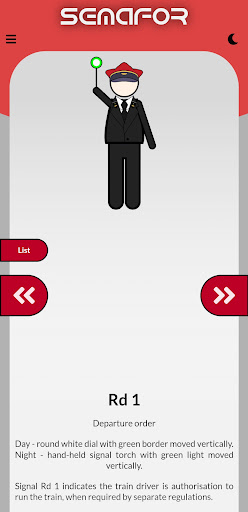

- signals given by vehicles and persons,
- cooperation of signals,
Application authors:
Piotr Goss (Pitkowa Kolej)
Mateusz Chworak
New features:
- React JS library,
- night mode + signal response to mode,
- English language,

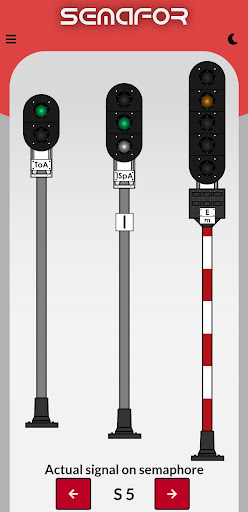

- semaphores layouts,
- selection of signals, indicators from a list,
- zoom graphics,
- guidance/help,
- signal Sz,
- fixed warning and shunting dial,
- train signals from switch,
- signalling cooperation,
Changes:
- Application UI,
- grouping of indicators,
- new sounds,
- shaped semaphore has the possibility to display signal Sz,
- change of application icon,
Fixed booting issue on Android 13 phones
Latest version made in Unity. Work is underway on a new, lighter version of the application. Changes in version 3.3.0 .:
- graphics of the interface and signaling devices,
- improved descriptions,
- removal of light barrier shields,
- signals DO, D1, D6 have been placed in the appropriate category,
- improved description of the signal Sz displayed for the correct signals defined in Ie-1 ,
- amendment W6a, W6b, W7, W8, W14,
- change in the "About us" tab,
- correction of the definition of the dark maneuvering dial.
- Correction of the definition of the dark repeater.
- speed correction on the timing disc for the Rt 5 signal,
- improvement of the DO signal description,
- addition of Tb 2 and Tb 3 signals
- minor text corrections.
- the description of the S 3 signal for SBL has been corrected,
- colored bars have been added to the heads of signaling devices,

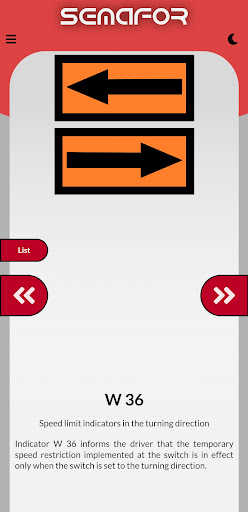

- new indicators have been added: W 35, W 36 and all related to the ETCS system,
- the description of the Pc 2 signal has been corrected in accordance with the changes implemented in the Ie-1 instruction,
- the problem with the light timing disc (ignition of chambers, timing gears) has been
fixed , - the links in the side menu have been corrected and changed,
- the icons of the Virtual Railways Association have been removed,
- the start screen has been changed,
- the help button has been added.
* 3.1.0
- a change in the appearance of the interface by Mateusz Kozłowski,
- corrections in the description of signals Rh 1, Rh 2, Rh 3, Rp 4, Rp 5, Rp 6, Rp 7
- graphics substitution for signal D 3,
- sound correction for signal D 3,
- change of the application icon,
* 3.0.1
Minor correction of reported and noticed errors.
3.0 *
- changing the application engine to Unity Engine,
- change of the application interface,
- missing elements from the previous version were completed,
...
* 3.0.1
Minor correction of reported and noticed errors.
3.0 *
- changing the application engine to Unity Engine,
- change of the application interface,
Added:
- semaphores and shaped discs,
- SBL semaphores,
- marshalling yards,
- shutters,
- all indicators from Ie-1,
- other indicators,
- signals broadcast by trains and persons.
* 2.2.0 - addition of repeating beacons, - addition of indicators: W9, W10a and W10b, W11a, W11b, - improvement of descriptions s10, s10a s6, - improvement of Ms2 signal description, - change of the name of "repeating semaphores" to "repeating beacons" in accordance with instruction E-1.
